Choose Your Model
| Specification | SSE2027-LV | SSE2027-HV |
|---|---|---|
| Configuration | Low vacuum | High vacuum |
| Airflow with 15 ft hose and nozzle | 160 CFM | 210 CFM |
| Motors | 2 × 102.1004 | 2 × 102.1009 |
| Supply | 120 V, 50/60 Hz | 120 V, 50/60 Hz |
| Total unit current | 13 A | 17 A |
| Plug | 15 A | 20 A |
| Included hose | 15 ft | 15 ft |
| Approximate configured weight | 50–60 lb | 50–60 lb |
Actual airflow and weight can vary with the selected filters, nozzle, and configuration.
Key Features

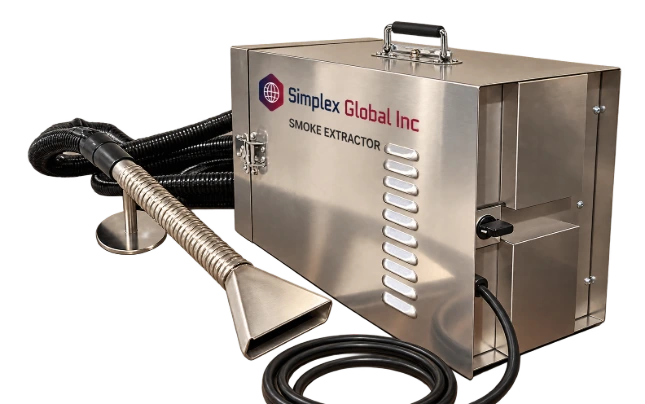

Portable stainless-steel housing with a stainless-steel top handle
Two motor configurations to suit different airflow requirements
15 ft hose included; 25 ft and 50 ft hoses available
ENT8-SS stainless-steel nozzle recommended for source capture
Disposable, washable, HEPA, and activated-carbon filter options
Filter configuration selected according to the customer's application
Available Filtration
| Filter | Option |
|---|---|
| EF100 | Basic prefilter |
| EF200 | HEPA filter, rated 99.97% at 0.3–1 μm |
| EF200A | Washable, reusable filter, rated 99.2% |
| EF400 | Disposable filter suited to rental and general-use configurations |
| 102.1006 | Combined prefilter and HEPA option |
| ECF100A | Optional activated-carbon filter for selected odor-control applications |
EF100 + EF200 is available as a prefilter and HEPA combination. Filters are selected for the customer's process and requirements. Filter ratings describe the specified filter, not the capture efficiency of the complete installed system.
Best For
✓ Welding Fume Extraction
✓ Portable Source Capture
✓ Welding Workstations
✓ Fabrication Shops
✓ Maintenance & Repair
✓ Mobile Industrial Applications
FAQs
What is the difference between the SSE2027-LV and SSE2027-HV?
The LV model delivers 160 CFM and draws 13 A through a 15 A plug. The HV model delivers 210 CFM and draws 17 A through a 20 A plug. Both operate on 120 V, 50/60 Hz. The airflow figures are measured with a 15 ft hose and nozzle.
What comes with the SSE2027?
Each unit includes a 15 ft hose. The filter configuration is selected according to your application and confirmed in your quote.
Are longer hoses available?
Yes. 25 ft and 50 ft hoses are available. Hose length and the selected filter can affect airflow at the nozzle.
Which nozzle do you recommend?
We recommend the ENT8-SS stainless-steel nozzle for positioning capture close to the welding source. Confirm the nozzle included with your quoted configuration.
Can I order the SSE2027 with a HEPA filter?
Yes. Available HEPA options include the EF100 prefilter with EF200 HEPA filter and the 102.1006 combined prefilter and HEPA filter. We can help select a configuration for your application.
Are disposable and washable filters available?
Yes. The EF400 is a disposable option suited to rental use, while the EF200A is a washable, reusable option. Filter selection depends on the material being captured and the customer's maintenance requirements.
Is an activated-carbon filter available?
Yes. The optional ECF100A can be selected for certain odor-control applications. Tell us which fumes or odors you need to address so we can assess whether it is suitable.
How much does the unit weigh?
A configured SSE2027 weighs approximately 50–60 lb, depending on the selected filters and nozzle.
Can I return filtered air to the workspace?
The SSE2027 is designed for filtered-air recirculation, but whether recirculation is suitable depends on the welding process, contaminants, chosen filters, and applicable workplace requirements. Tell us about your application before selecting a configuration.
How do I request pricing?
Send us your preferred model (LV or HV), welding process, hose length, nozzle choice, and filtration needs. Contact Simplex Global Inc. at +1 (825) 305-221 or info@simplexglobalinc.com for a quote.
