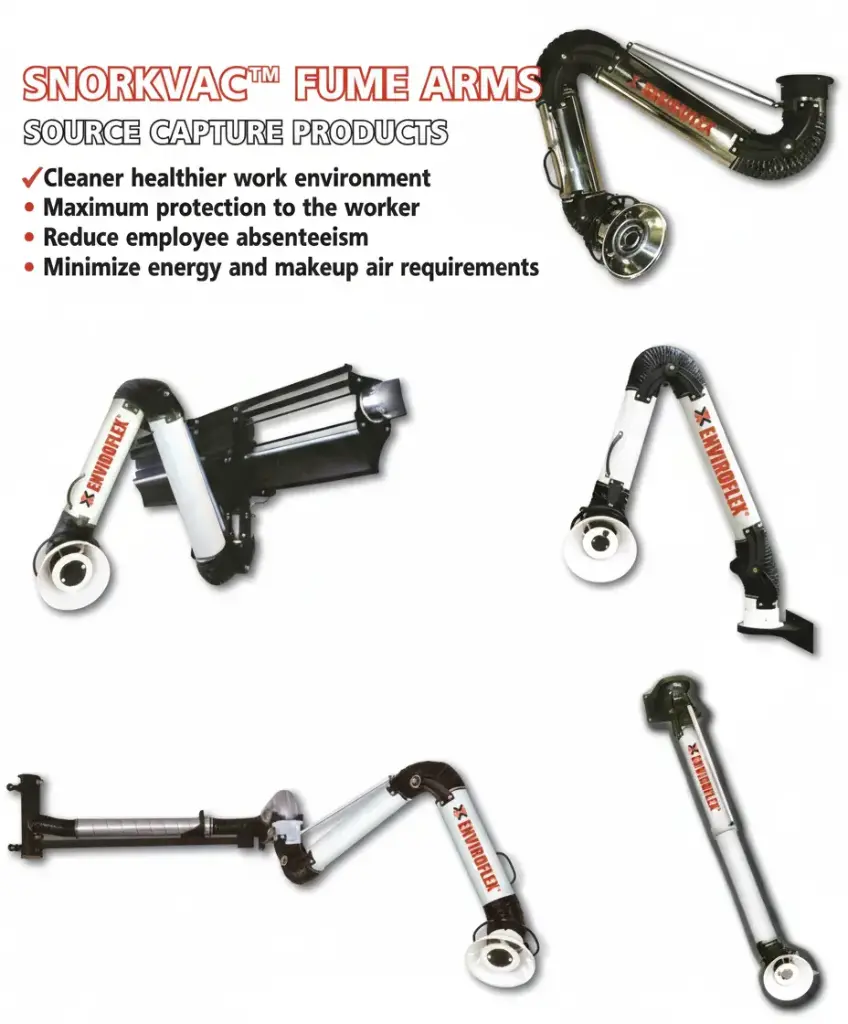

SNORKVAC FUME ARMS
🏆The No.1 Choice for Source Capture Products
Trusted for performance. Chosen for reliability. Access our manual, product catalog, and comprehensive part list with descriptions below.
7-Days Money-Back Guarantee
Shipping: Same day dispatch or delivery within 2–5 business days
Description:
After reading these documents, you will be able to select your best solution with part number as well.
Send us an email for more information at Info@enviroflex.com
Arm Models Pdf: Click here➡️ ARM models
Arms Maintenance Manual: Click here➡️ Arms Maintenance Manual
Arms Parts Breakdown: Click here➡️ Arm Parts Breakdown
What is the Enviroflex Snorkvac™ Arm used for?
The Snorkvac™ arm is designed for local source capture of harmful fumes, dusts, and vapors at the point of emission. It is ideal for:
- Welding, soldering, plasma cutting
- Grinding, gouging, sanding
- Laboratory fume extraction
- Chemical fumes, solvent vapors
- Pharmaceutical and food dusts

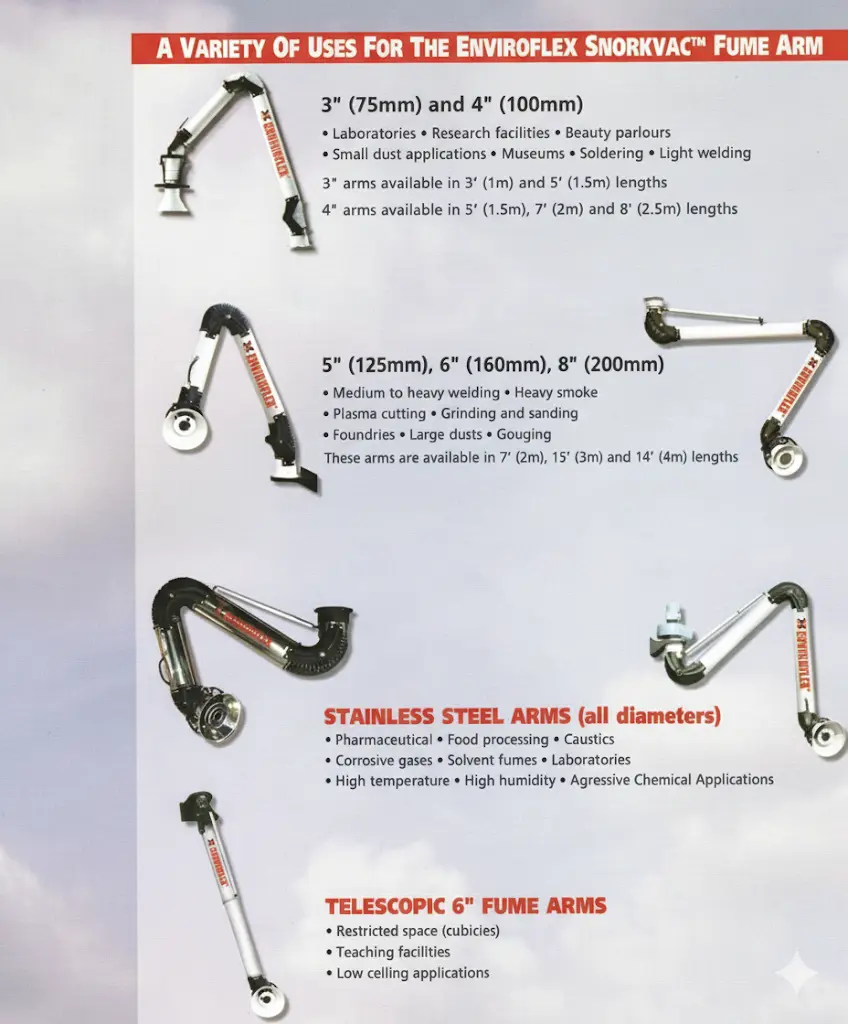

What arm diameters are available?
Diameter | Ideal Use Case |
3″ (75mm) | Light-duty (labs, beauty, soldering) |
4″ (100mm) | Light to medium duty |
5″ (125mm) | Medium to heavy welding/fume jobs |
6″ (160mm) | Heavy smoke, plasma cutting |
8″ (200mm) | Large dusts, grinding, foundry use |
What arm lengths are available?
Length | Typical Model Usage |
3 ft / 1.0 m | Compact workstations |
5 ft / 1.5 m | Benches and carts |
7 ft / 2.0 m | General shop use |
10 ft / 3.0 m | Wall or ceiling mounted |
14 ft / 4.0 m | Large reach, overhead hoods |
Telescopic (54–96″) | Low ceilings, cubicles, teaching setups |
What mounting types are available?
- Wall-mounted
- Ceiling-mounted
- Bench-mounted
- Telescopic (adjustable)

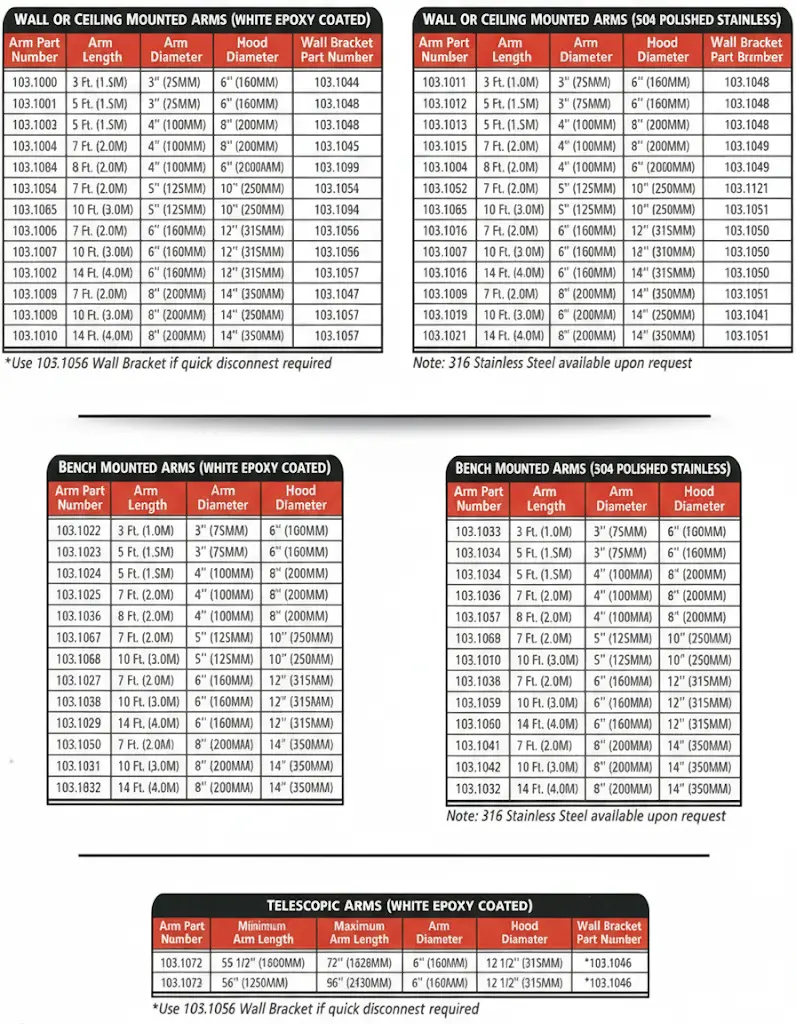

Note: Use wall bracket part 103.1056 if quick disconnect is required.
What is the difference between Epoxy-Coated and Stainless Steel arms?
Type | Best For | Features |
White Epoxy-Coated | Welding, grinding, labs | Corrosion-resistant coating, general use |
304 Polished Stainless Steel | Pharma, food, chemicals | High-temperature, high-humidity, aggressive vapors |
Do the arms come with dampers?
Yes, all Snorkvac™ arms are equipped with standard dampers to control airflow and suction.

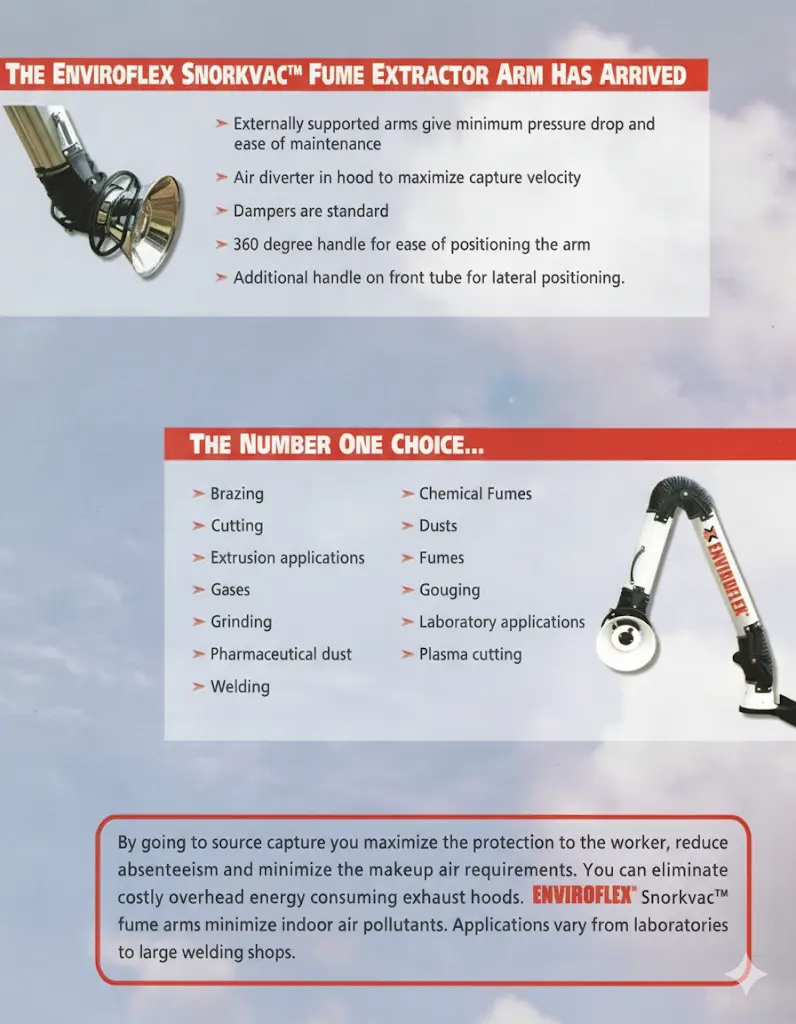

Is positioning the arm easy?
Yes. The arms feature:
- External support joints – low resistance and minimal pressure drop
- 360° rotation handle – easy hood movement
- Front handle – for lateral precision positioning
What kind of fan or blower should I use?
Fan selection depends on arm length and diameter. A general guide:
Arm Size | Recommended Fan (HP) | CFM Range |
7 ft, 6″ dia | 1–1.5 HP | 700–1000 CFM |
10 ft, 6″/8″ dia | 1.5–2 HP | 1000–1200+ CFM |
14 ft, 8″ dia | 2 HP+ | 1200–1400 CFM |
Can it be used with filters?
Yes. You can pair with:
- Pre-filters
- HEPA filters
- Activated carbon filters
…depending on your contaminant type. Ensure the fan has sufficient power to overcome filter resistance.
Can it handle corrosive or explosive fumes?
- For corrosive or caustic gases, use stainless steel arms only.
- For explosive environments, consult us about explosion-proof motors or ATEX-compliant systems.
What makes Snorkvac™ arms better?
- External support = less airflow restriction
- Modular design = fast service and replacements
- High-durability build = for industrial use
- Multiple sizes/materials = application-specific flexibility
