Available Models
| Model | Part / Drawing No. | Maximum Airflow | Motor Power | Power Supply | Noise Level | Inlet Diameter | Outlet Diameter |
|---|---|---|---|---|---|---|---|
| Simplex S-03 | 105202 | 1,500 m³/h | 0.75 kW | 3~400 V / 50 Hz | 77 dB(A) | 160 mm | 160 mm |
| Simplex S-04 | 105203 | 2,000 m³/h | 1.1 kW | 3~400 V / 50 Hz | 79 dB(A) | 160 mm | 200 mm |
| Simplex S-05 | 105204 | 3,000 m³/h | 2.2 kW | 3~400 V / 50 Hz | 80 dB(A) | 200 mm | 200 mm |
Designed for Point-of-Source Extraction

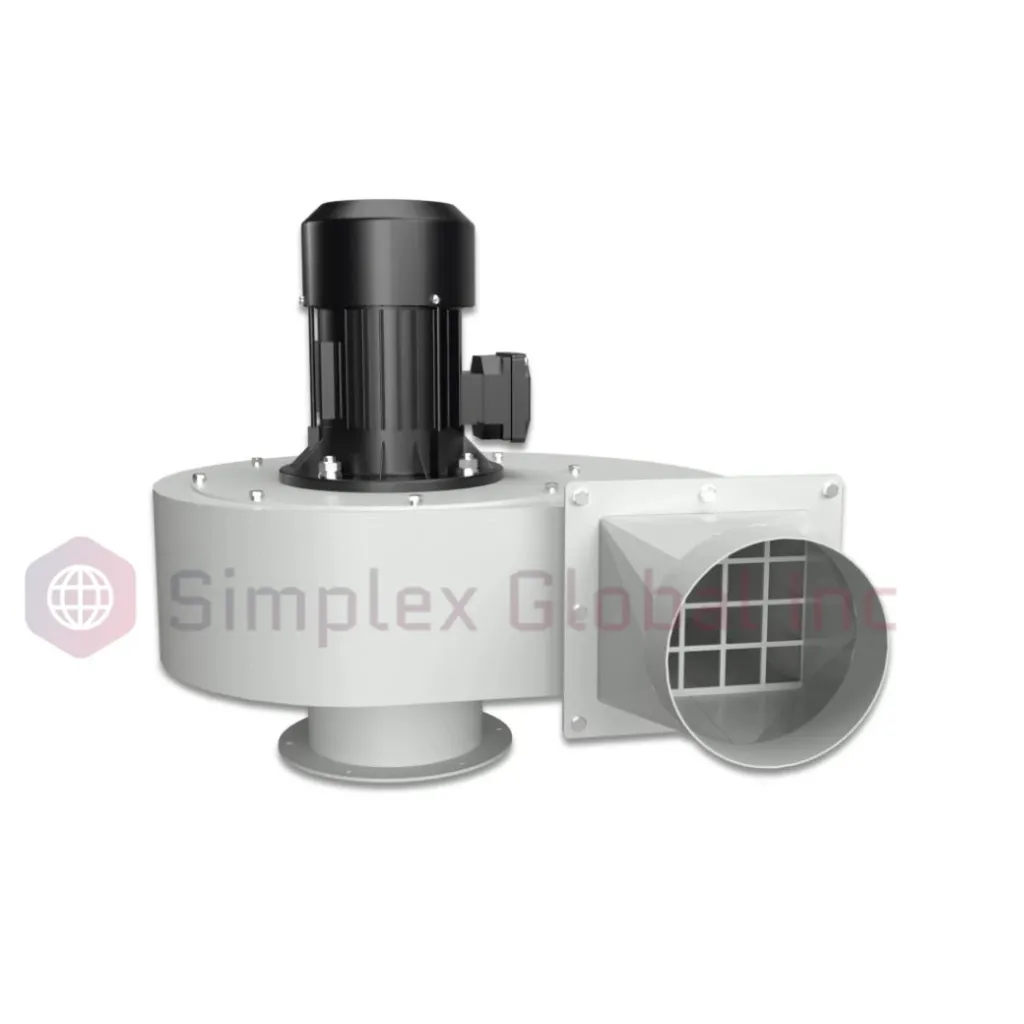

Simplex extraction fans can be incorporated into systems using extraction arms, extension booms, sliding extraction arrangements, exhaust hose reels, and hose-drop systems. Their compact construction makes them suitable for industrial work areas where efficient localized extraction is required without unnecessarily complex equipment.
Typical Applications
- Welding fume extraction at individual workstations
- Grinding and cutting dust removal
- Localized capture of process fumes
- Extraction-arm ventilation systems
- Mobile or stationary filtration installations
- Workshop and production-area ventilation
- Laboratory source-capture applications
- Exhaust hose reel and hose-drop systems
- Slotted extraction and articulated extraction systems
- Transport of clean or lightly contaminated industrial air
- Local ventilation for manufacturing and maintenance areas
- Dust-extraction systems outside explosion-hazardous areas
- Applications requiring spark-free fan construction
Durable Industrial Construction
Simplex S-Series fans combine a robust industrial housing with components selected for reliable extraction-system operation.
Aluminum Impeller
Provides a lightweight rotating assembly suitable for industrial air-handling applications.
Powder-Coated Steel Housing
The welded steel fan housing provides structural durability, while the powder-coated finish helps protect the unit against corrosion.
Three-Phase Electric Motor
An enclosed, externally cooled motor provides dependable operation for industrial extraction applications.
Connection Flanges
Integrated inlet and outlet connections simplify installation with extraction arms, ducting, hoses, and associated ventilation components.
Compact Installation Design
The fan configuration allows installation on walls, ceilings, or suitable support structures depending on the extraction-system layout.
Protective Guarding
Impeller and inlet guarding provides additional protection around moving components during operation.
Integrated Junction Box
Provides a convenient location for electrical power and control connections.
Removable Outlet Connection
The removable outlet fitting provides additional flexibility when configuring the fan within an extraction system.
Choosing a Simplex Extraction Fan
The appropriate fan depends on the required airflow, duct configuration, extraction equipment, and overall system resistance.
The S-03 provides up to 1,500 m³/h and is the smallest model in the range. The S-04 increases maximum airflow to 2,000 m³/h, while the S-05 provides up to 3,000 m³/h for applications requiring greater air-moving capacity.
For complete extraction systems, Simplex fans can be paired with compatible suction arms, extension booms, hoses, reels, and filtration equipment to create a point-of-source air extraction solution.
