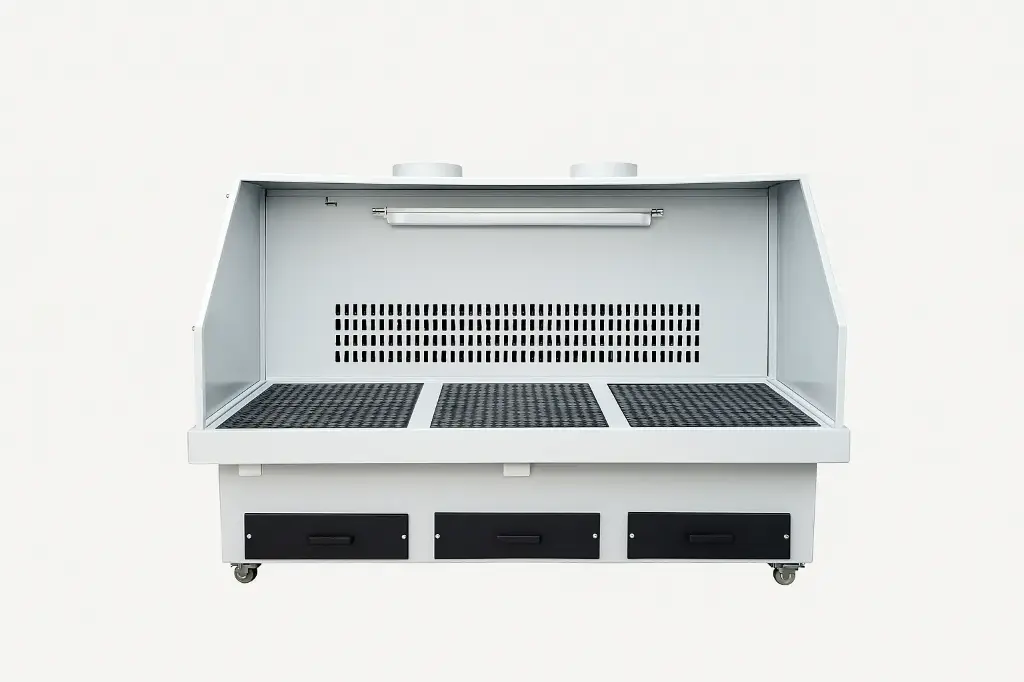

3500 CFM Industrial Downdraft Table with Dual 3 HP Motors
The SDT-2000 features a large 78.7-inch work table and 215 ft² of filtration area for high-volume dust collection. Automatic pulse-jet cleaning helps maintain filter performance while reducing manual filter maintenance.
Key Features
- High-capacity 3500 CFM airflow
- Dual 3 HP motors
- Large 78.7" work table
- Four cartridge filters
- 215 ft² total filtration area
- Flame-retardant polyester filter media
- Automatic pulse-jet cleaning
- Dual-fan configuration
- Self-contained dust collection
- 220V / 60Hz single-phase power
Technical Specifications
| Specification | Details |
|---|---|
| Model | SDT-2000 |
| Equipment Type | Downdraft Table / Cartridge Dust Collector |
| Overall Dimensions | 78.7" × 39.4" × 66.9" |
| Work Table Size | 78.7" × 19.7" |
| Airflow Capacity | 3500 CFM |
| Motor Power | 3 HP × 2 |
| Total Motor Power | 6 HP |
| Fan Quantity | 2 |
| Electrical Supply | 220V / 60Hz / Single Phase |
| Filter Type | Cartridge Filter |
| Filter Quantity | 4 |
| Filter Size | 12.8" × 19.7" |
| Filter Media | Coated Flame-Retardant Polyester |
| Filtration Area | 20 m² / Approx. 215 ft² |
| Filter Cleaning | Automatic Pulse-Jet |
| Oil-Water Separator | 1 Unit |
| Compliance | Designed for Applicable CSA & North American Electrical Standards |
Best For
✓ Heavy-Duty Grinding & Welding
✓ Large Manufacturing Facilities
✓ High-Volume Dust Collection
✓ Metal Fabrication Shops
✓ Industrial Sanding
✓ Multi-Operator Workstations
FAQs
What makes the SDT-2000 a high-capacity downdraft table?
The SDT-2000 combines 3500 CFM airflow, dual 3 HP motors, four cartridge filters and 215 ft² of filtration area for demanding industrial dust collection.
What applications is the SDT-2000 designed for?
It is suitable for heavy-duty grinding, welding, sanding, metal fabrication and other high-volume dust-producing applications.
How are the filters cleaned?
The integrated automatic pulse-jet system uses compressed-air pulses to remove accumulated dust from the cartridge filters.
How many filters does the SDT-2000 use?
The system uses four flame-retardant polyester cartridge filters.
What power does the SDT-2000 require?
The standard configuration operates on 220V / 60Hz single-phase power with two 3 HP motors.
