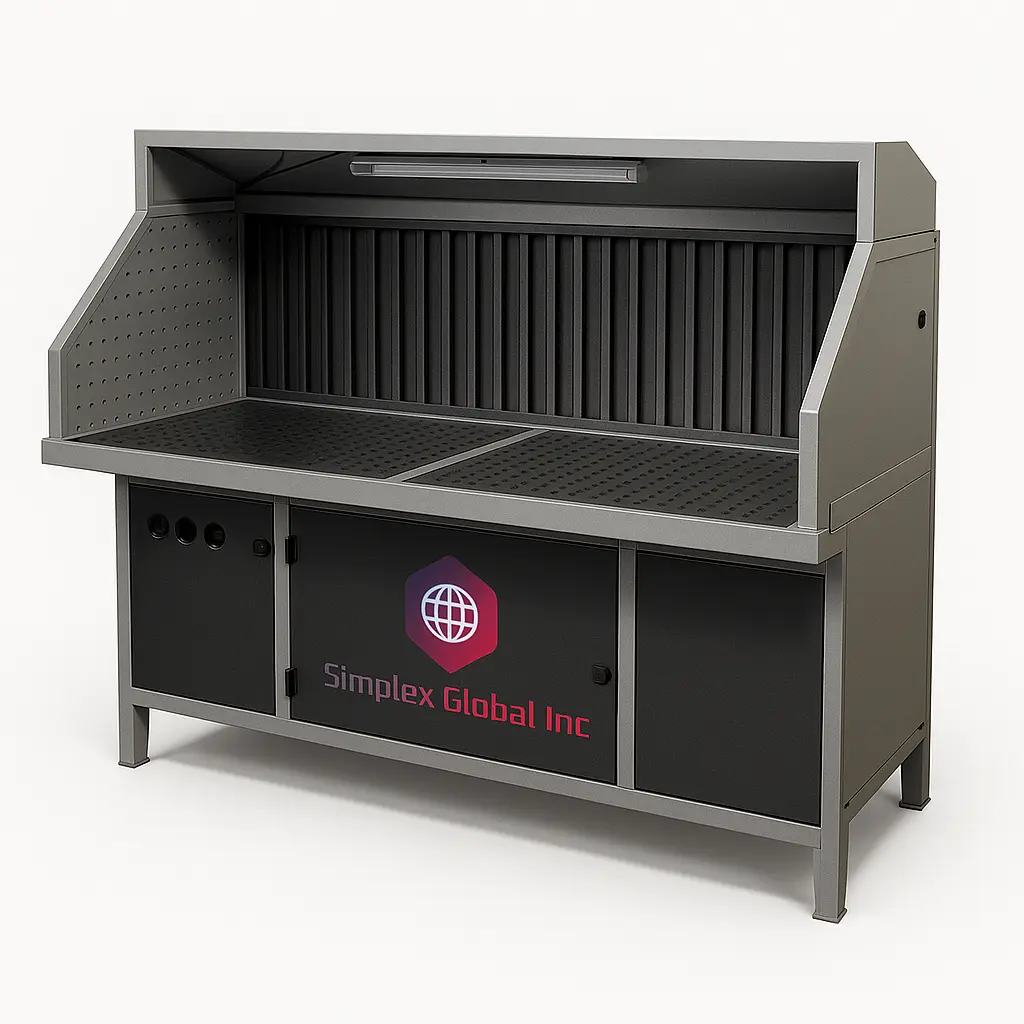

SDT-1800
🌟 Ideal For:
- Welding & Grinding Shops
- Fabrication Facilities
- Dust Collection Workstations
- Industrial Workshops
7-Days Money-Back Guarantee
Shipping: Same day dispatch or delivery within 2–5 business days
🔧 Specifications:
| Feature | Details |
|---|---|
| Model | SDT-1800 |
| Length | 1.8 meters |
| Dimensions (L×W×H) | 1800mm × 1015mm × 1530mm |
| Packing Size | 1850mm × 1065mm × 1680mm |
| Weight | Net: 352.9 kg / Gross: 413.3 kg |
| Airflow | 2400 m³/h |
| Motor Power | 3KW |
| Voltage | 1~230V / 60Hz |
| Noise Level | ≤ 70 dB |
| Filter Cartridge | 1 cartridge |
| Filter Area | 16.5 m² |
| Filter Efficiency | 0.3μm ≥ 99.9% |
| Filter Element | Ahlstrom Nano Flame-Retardant Filter |
| Cleaning Method | Automatic Pulse Cleaning |
| Compressed Air | 0.4–0.6 MPa; 0.25–0.3 m³/min |
| Certification | CE Certified |
| Color | All Around Black |
| Canadian Plug | Yes |
| Quantity | 1 Set |
❓ Frequently Asked Questions (FAQs)
Q1: What is the primary use of this downdraft table?
A: This downdraft table is designed to capture dust, fumes, and particles during industrial processes like grinding, welding, sanding, and polishing. It ensures a cleaner, safer workspace by drawing airborne contaminants away from the user.
Q2: How effective is the filtration system?

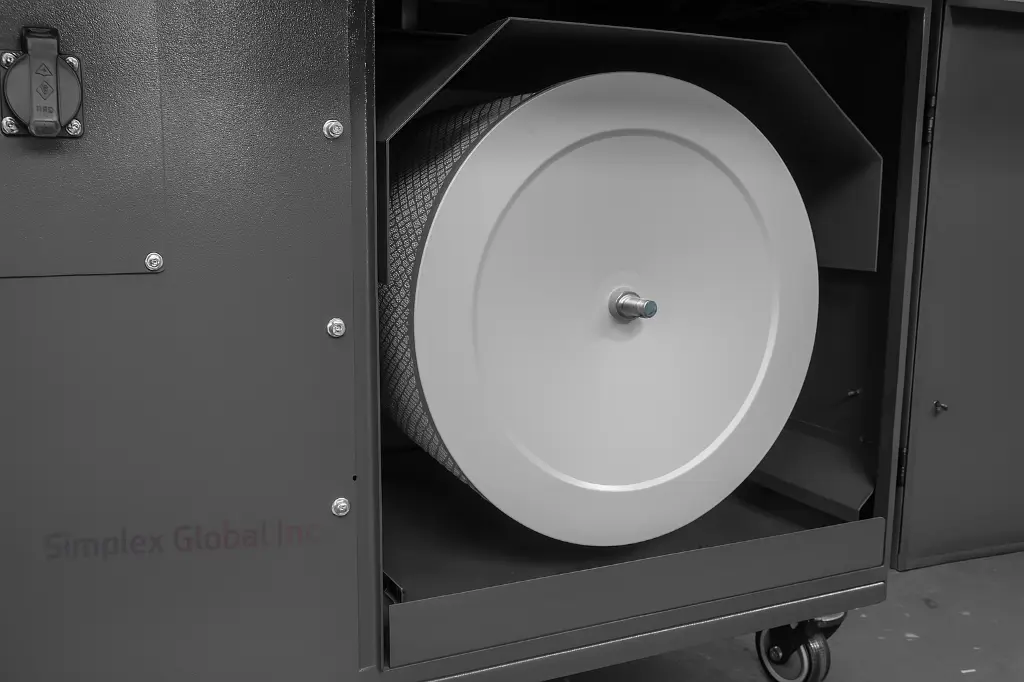

A: The built-in Ahlstrom nano flame-retardant filter has a filtration efficiency of 99.9% for particles as small as 0.3 microns, providing exceptional air purification in heavy-duty environments.
Q3: Does it include the filter cartridge?
A: Yes, one high-efficiency filter cartridge (SDT-CB-F) is included with the unit.
Q4: What type of cleaning system does it use?
A: It features an automatic pulse cleaning system that maintains the filter's performance with minimal maintenance.
Q5: Is the unit noisy during operation?
A: No, the noise level is ≤70 dB, which is quieter than most industrial machines in its category.
Q6: What kind of plug does it come with?
A: The unit comes equipped with a Canadian standard plug (1~230V/60Hz), making it ready to use in North America.
Q7: Can I move this downdraft table easily?
A: Yes, the unit is mounted on caster wheels, making it easy to move within your workshop.
Q8: How often should I replace the filter?
A: Filter life varies based on usage, but with the automatic cleaning system, the filter can typically last for several months under regular operation. Always check pressure drop and visible clogging to determine when to replace it.
Q9: Is it CE certified?
A: Yes, this unit is CE certified, ensuring compliance with European safety and performance standards.
Q10: Can I customize the table (color, size, features)?
A: Currently, this listing is for the 1.8m all-black standard version. For custom options, please contact Simplex Global Inc. directly.
