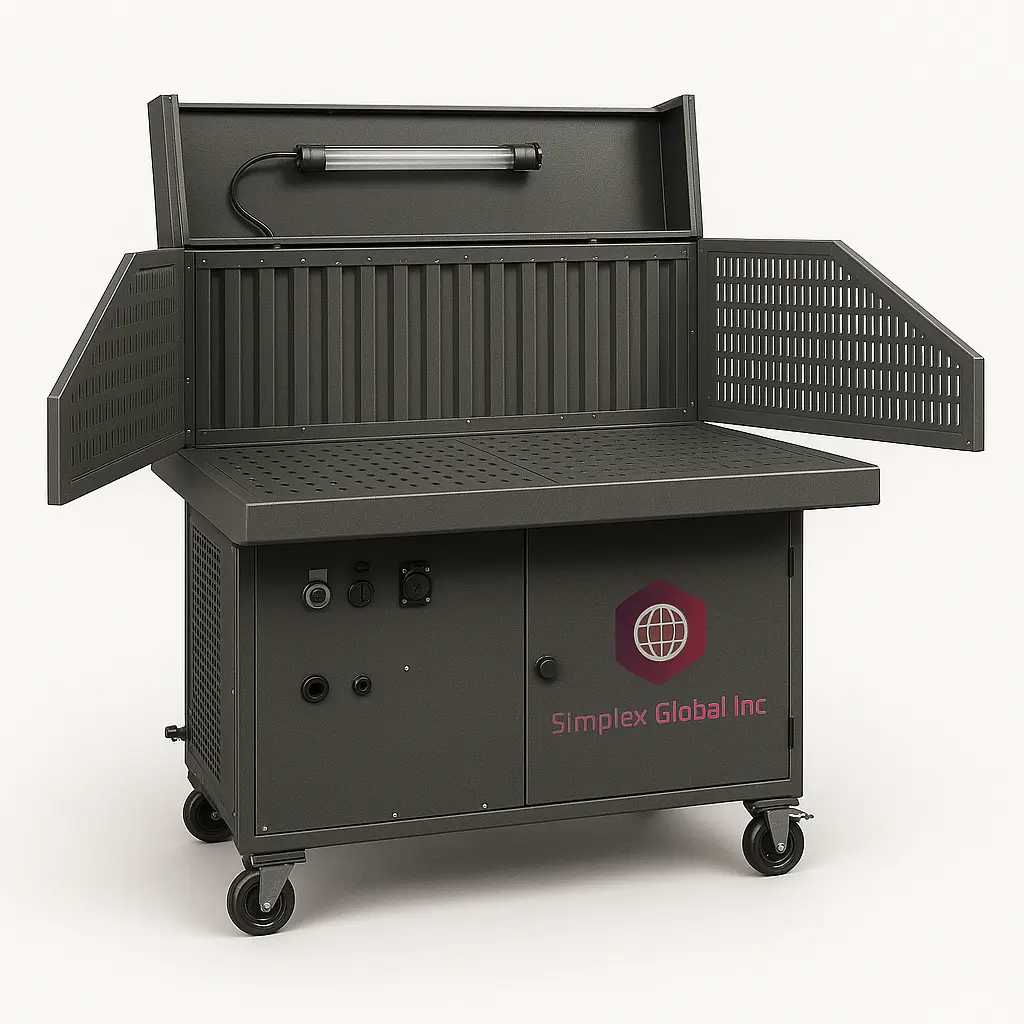

1410 CFM Downdraft Table with Nanofiber Filter
Powered by a 4 HP motor, the SDT-1300 delivers approximately 1410 CFM airflow with automatic pulse-jet filter cleaning. Quiet ≤70 dB operation makes it suitable for industrial shops, fabrication areas and workstations.
Key Features
- ≥99.9% efficiency at 0.3 micron
- Ahlstrom nanofiber filter media
- Flame-retardant filter cartridge
- 1410 CFM airflow
- Powerful 4 HP motor
- Automatic pulse-jet cleaning
- Large 178 ft² filtration area
- ≤70 dB operating noise
- 230V / 60Hz single-phase
- Canadian plug
Technical Specifications
| Specification | Details |
|---|---|
| Model | SDT-1300 |
| Equipment Type | Downdraft Grinding Table |
| Dimensions | 51.2" × 40.0" × 60.2" |
| Weight | 683 lb |
| Airflow | Approx. 1410 CFM |
| Motor Power | 4 HP |
| Electrical | 230V / 60Hz / Single Phase |
| Noise Level | ≤70 dB(A) |
| Filter | SDT-CB-F Cartridge |
| Filter Quantity | 1 |
| Filter Area | 16.5 m² / Approx. 178 ft² |
| Filter Efficiency | ≥99.9% at 0.3 Micron |
| Filter Media | Ahlstrom Nanofiber, Flame-Retardant |
| Filter Size | 420 × 450 mm |
| Cleaning | Automatic Pulse-Jet |
| Compressed Air | 0.4–0.6 MPa; 0.25–0.3 m³/min |
| Plug | Canadian Plug |
| Certification | CE Certified; UL & CUL on Request |
Best For
✓ Welding Fume Extraction
✓ Metal Grinding & Polishing
✓ Deburring
✓ Soldering Stations
✓ Fabrication Shops
✓ Fine Dust & Particulate Control
FAQs
What is the airflow capacity of the SDT-1300?
The SDT-1300 delivers approximately 1410 CFM (2400 m³/h) airflow.
What filter does the SDT-1300 use?
It uses an Ahlstrom nanofiber flame-retardant cartridge filter with ≥99.9% efficiency at 0.3 micron.
How is the filter cleaned?
An automatic pulse-jet system uses compressed air to remove accumulated dust from the filter cartridge.
What are the electrical requirements?
The standard unit operates on 230V / 60Hz single-phase power and is supplied with a Canadian plug.
Can it be used for combustible or explosive dust?
Flame-retardant filter media does not make the complete unit explosion-proof. Suitability for combustible dust must be determined according to the specific material, application and applicable safety requirements.
