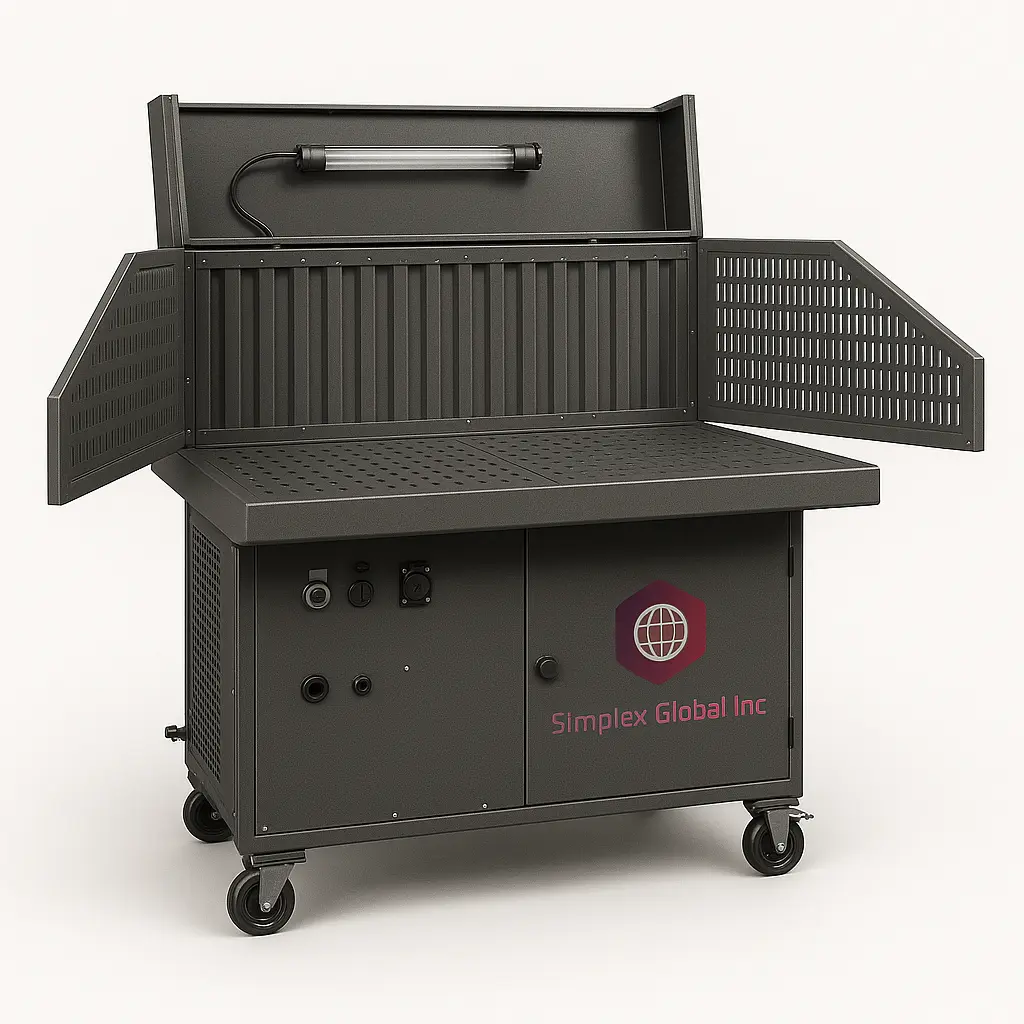

SDT-1300 Dust and Fume Extraction Downdraft Table
High-efficiency cartridge dust collector designed for fine dust and fume extraction in industrial and workshop environments. Equipped with an Ahlstrom nano flame-retardant filter offering 99.9% efficiency at 0.3 micron, automatic pulse-jet cleaning, and a powerful 4 HP motor delivering approximately 1410 CFM airflow. Quiet operation at ≤70 dB. 230 V / 60 Hz.
7-Days Money-Back Guarantee
Shipping: Same day dispatch or delivery within 2–3 business days
📋 Specification Table
| Item | SDT-1300 (Downdraft Table) | SDT-CB-F (Filter Cartridge) |
|---|---|---|
| Size (L×W×H) | 51.2 in × 40.0 in × 60.2 in | 420×450 mm |
| Weight | 683 LB | 9.5 kg (Net) |
| Air Flow | 1410 CFM | — |
| Motor Power | 4 HP | — |
| Voltage | 230V / 60Hz / Single Phase | — |
| Noise Level | ≤ 70 dB (A) | — |
| Filter Cartridge | 1 pc | 1 pc |
| Filter Area | 16.5 ㎡ (≈178 ft²) | 16.5 ㎡ (≈178 ft²) |
| Filter Efficiency | 0.3 micron, ≥99.9% | 0.3 micron, ≥99.9% |
| Filter Material | Ahlstrom nano fibre, flame-retardant | Ahlstrom nano fibre, flame-retardant |
| Compressed Air | 0.4–0.6 MPa; 0.25–0.3 m³/min | — |
| Cleaning Method | Automatic pulsating | — |
| Plug Type | Canadian Plug | — |
| Color | All-around Black | — |
| Certification | CE Certified (UL & CUL on request) | — |
| Included Quantity | 1 Set | 1 pc |
✅ Ideal For
This industrial downdraft table is ideal for:
- Welding fume extraction
- Metal grinding and polishing workstations
- Deburring operations
- Soldering stations
- Dust control in fabrication shops
- Handling fine particles in electronic or plastic component processing
- Environments that require flame-retardant filter systems
💬 Why It’s Important
✅ Cleaner Air: Reduces airborne particles to protect lungs
✅ Safer Workspace: Limits explosion risks from combustible dust
✅ Compliant: Helps meet health & safety regulations
✅ Longer Tool Life: Keeps equipment cleaner and cooler
✅ Improves Productivity: Workers focus better in cleaner environments
❓ Frequently Asked Questions (FAQ)
Q1: What is the airflow capacity of this model?
The SDT-1300 provides an airflow of 2400m³/h, which is excellent for medium to heavy-duty industrial dust and fume collection.
Q2: What kind of filter does it use?
It uses an Ahlstrom nano flame-retardant filter, which offers high safety and captures 99.9% of particles as small as 0.3μm.
Q3: How often does the filter need to be cleaned?
The unit features an automatic cleaning system that uses compressed air, reducing the need for manual maintenance.
Q4: What is the noise level during operation?
It operates at ≤70 dB, which is comparable to the sound of a standard vacuum cleaner—safe for indoor industrial environments.
Q5: Is this model compatible with Canadian power standards?
Yes, it comes with a Canadian plug and supports 230V / 60Hz operation.
Q6: What’s included with this product?
You’ll receive 1 full set, which includes the table and built-in filtration system ready for use.
Q7: Can I use it for explosive dust or flammable materials?
While it has flame-retardant filters, always consult your safety officer or follow local guidelines before using it in explosive or volatile environments.
