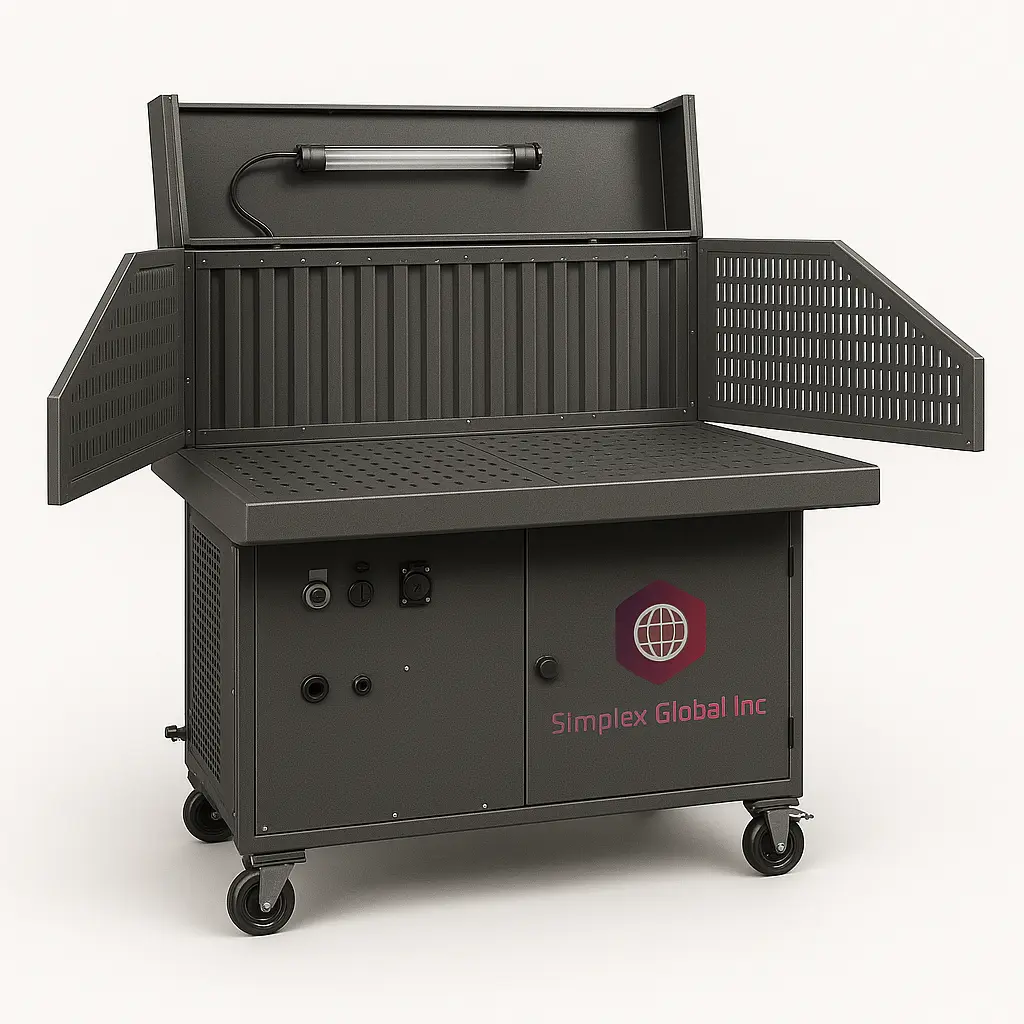

SDT-1300
Heavy-duty solution for fume, smoke, and dust control in industrial settings
This downdraft table is ideal for grinding, welding, and polishing operations. Built with a powerful suction system, high-efficiency nano filters, and automatic filter cleaning, it keeps your air clean and your workspace compliant.
✅ Ideal For
This industrial downdraft table is ideal for:
- Welding fume extraction
- Metal grinding and polishing workstations
- Deburring operations
- Soldering stations
- Dust control in fabrication shops
- Handling fine particles in electronic or plastic component processing
- Environments that require flame-retardant filter systems
7-Days Money-Back Guarantee
Shipping: Same day dispatch or delivery within 2–5 business days
📋 Specification Table
| Item | SDT-1300 (Downdraft Table) | SDT-CB-F (Filter Cartridge) |
|---|---|---|
| Size (L×W×H) | 1300×1015×1530 mm | 420×450 mm |
| Weight | 309.8 kg (Net) / 361.8 kg (Gross) | 9.5 kg (Net) |
| Air Flow | 2400 m³/h | — |
| Motor Power | 3 kW | — |
| Voltage | 230V / 60Hz | — |
| Noise Level | ≤ 70 dB | — |
| Filter Cartridge | 1 pc | 1 pc |
| Filter Area | 16.5 ㎡ | 16.5 ㎡ |
| Filter Efficiency | 0.3 μm ≥ 99.9% | 0.3 μm ≥ 99.9% |
| Filter Material | Ahlstrom nano flame-retardant | — |
| Compressed Air | 0.4–0.6 MPa; 0.25–0.3 m³/min | — |
| Cleaning Method | Automatic pulsating | — |
| Plug Type | Canadian Plug | — |
| Color | All-around Black | — |
| Certification | CE Certified | — |
| Included Quantity | 1 Set | 1 pc |
💬 Why It’s Important
✅ Cleaner Air: Reduces airborne particles to protect lungs
✅ Safer Workspace: Limits explosion risks from combustible dust
✅ Compliant: Helps meet health & safety regulations
✅ Longer Tool Life: Keeps equipment cleaner and cooler
✅ Improves Productivity: Workers focus better in cleaner environments
❓ Frequently Asked Questions (FAQ)
Q1: What is the airflow capacity of this model?
The SDT-1300 provides an airflow of 2400m³/h, which is excellent for medium to heavy-duty industrial dust and fume collection.

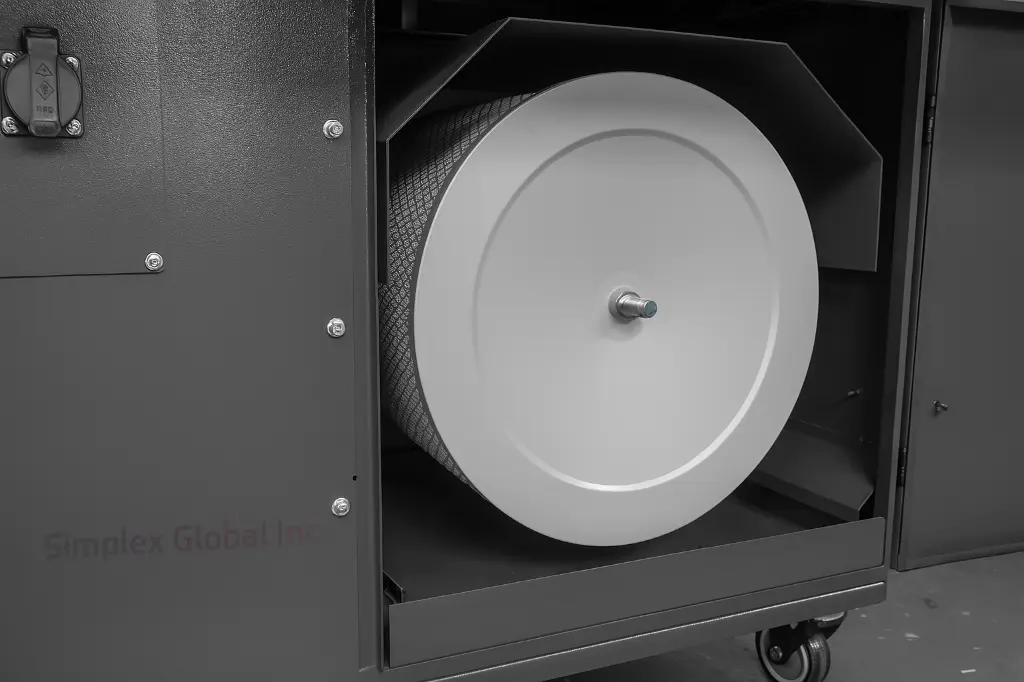

Q2: What kind of filter does it use?
It uses an Ahlstrom nano flame-retardant filter, which offers high safety and captures 99.9% of particles as small as 0.3μm.
Q3: How often does the filter need to be cleaned?
The unit features an automatic cleaning system that uses compressed air, reducing the need for manual maintenance.
Q4: What is the noise level during operation?
It operates at ≤70 dB, which is comparable to the sound of a standard vacuum cleaner—safe for indoor industrial environments.
Q5: Is this model compatible with Canadian power standards?
Yes, it comes with a Canadian plug and supports 230V / 60Hz operation.
Q6: What’s included with this product?
You’ll receive 1 full set, which includes the table and built-in filtration system ready for use.
Q7: Can I use it for explosive dust or flammable materials?
While it has flame-retardant filters, always consult your safety officer or follow local guidelines before using it in explosive or volatile environments.
