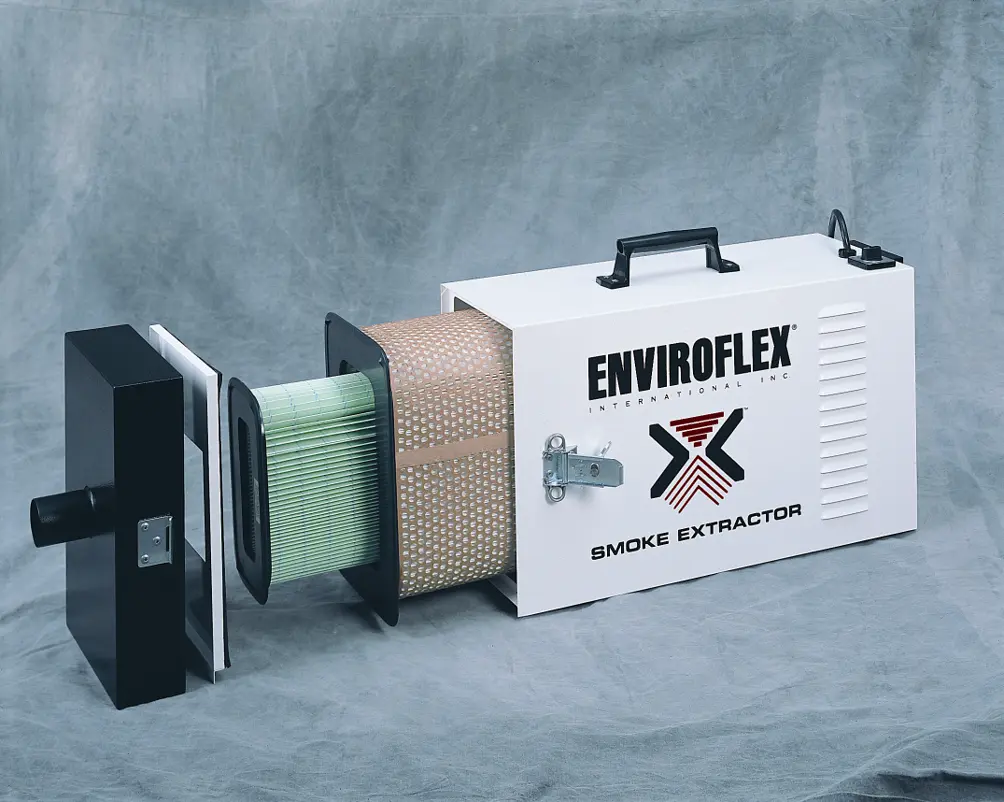

High Vacuum Welding Fume Extractor – 100" W.G.
Available with one or two bypass motors, the ESE High Vacuum series offers washable and HEPA filtration configurations. Its portable design, 15 ft hose and high-vacuum performance make it ideal for demanding source-capture applications and hard-to-reach work areas.
Key Features
- 100" W.G. (26 kPa) maximum vacuum
- 105 or 210 CFM airflow
- Single or dual bypass motors
- Washable or HEPA filter configurations
- 120V / 50–60Hz operation
- Standard 15 ft extraction hose
- Optional 25 ft & 50 ft hoses
- 1¾" / 45mm hose diameter
- Designed for MIG gun smoke extraction
- Optional activated carbon filtration
- Optional stainless-steel cabinet
- Multiple nozzle configurations available
Technical Specifications
| Specification | ESE101A-W-HV | ESE201A-W-HV | ESE102A-HV | ESE202A-HV |
|---|---|---|---|---|
| Air Flow | 105 C.F.M. (178 m³/hr) | 210 C.F.M. (355 m³/hr) | 105 C.F.M. (178 m³/hr) | 210 C.F.M. (355 m³/hr) |
| Filtration Efficiency | 0.3 - 1 um (46%), 1.0 - 3.0 um (61%), 3.0 - 10 um (95%) | Same as ESE101A-W-HV | (EF100: 1.0-3.0 Microns 50%-64.9%), 3.0-10.0 Microns | Same as ESE102A-HV |
| Number of Filters | 1 (EF200A) *** | 1 (EF200A) *** | 2 (EF100 + EF200) | 2 (EF100 + EF200) |
| Type of Filters | Washable | Washable | Throwaway | Throwaway |
| Maximum Vacuum | 100"W.G. (26KPA) | 100"W.G. (26KPA) | 100"W.G. (26KPA) | 100"W.G. (26KPA) |
| Number of Motors | 1 | 2 | 1 | 2 |
| Type of Motors | Bypass | Bypass | Bypass | Bypass |
| Voltage | 120 Volts, 50/60 HZ | 120 Volts, 50/60 HZ | 120 Volts, 50/60 HZ | 120 Volts, 50/60 HZ |
| Amperage | 8.5 amps | 17 amps | 8.5 amps | 17 amps |
| Dimensions | L 26 ½” x W 9 ¼” x H 14 ½” | Same as ESE101A-W-HV | Same as ESE101A-W-HV | Same as ESE101A-W-HV |
| Weight | 38 Lbs. | 43 Lbs. | 40 Lbs. | 45 Lbs. |
| Hose Length | 15 ft. (4.6 M) | 15 ft. (4.6 M) | 15 ft. (4.6 M) | 15 ft. (4.6 M) |
| Hose I.D. | 1¾” (45mm) | 1¾” (45mm) | 1¾” (45mm) | 1¾” (45mm) |
Filter Efficiency
EF200A Washable Filter:
0.3–1.0 µm: 46%, 1.0–3.0 µm: 61%, 3.0–10.0 µm: 95%
EF100 Primary Filter:
1.0–3.0 µm: 50–64.9%, 3.0–10.0 µm: ≥85%
EF200 HEPA Filter:
0.3–1.0 µm: 99.97%
Important: Precoat should be used with the EF200A washable filter only.
Best For
✓ MIG Gun Smoke Extraction
✓ Welding Fume Extraction
✓ Stainless Steel Welding
✓ Maintenance & Repair Welding
✓ Portable Source Capture
✓ Hard-to-Reach Work Areas
FAQs
What makes the ESE High Vacuum models different from the Low Vacuum models?
The High Vacuum series provides up to 100" W.G. (26 kPa) maximum vacuum, making it better suited for applications requiring stronger suction through smaller hoses and source-capture tools.
What airflow is available?
Single-motor models provide 105 CFM, while dual-motor models provide up to 210 CFM.
Which models use HEPA filtration?
The ESE102A-HV and ESE202A-HV use an EF100 primary filter combined with an EF200 HEPA filter.
Which models use washable filters?
The ESE101A-W-HV and ESE201A-W-HV use the EF200A washable filter. Precoat should be used with this filter.
Can longer hoses be used?
Yes. A 15 ft hose is standard, with optional 25 ft and 50 ft lengths available.
