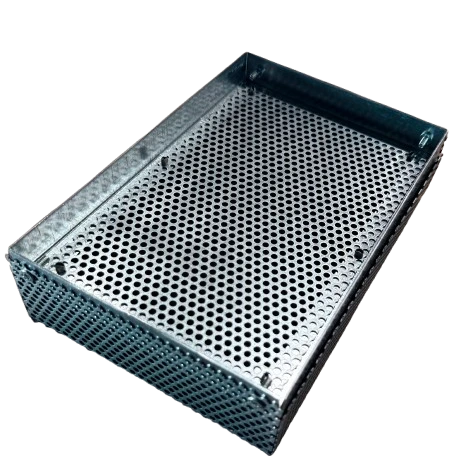

ECF100A Charcoal Filter for VOC and Odor Control
The ECF100A Activated Carbon Filter is installed between the main filters and motors. Two charcoal cassettes are used, with airflow direction clearly indicated for proper installation and effective use of the carbon media.
Key Features
- Activated carbon filter media
- Designed for odor and gas absorption
- Helps control VOCs and unwanted smells
- Two-cassette filter configuration
- Installed between filters and motors
- Airflow direction indicated on cassette
- Suitable for industrial odor-control applications
Technical Specifications
| Specification | Details |
|---|---|
| Model | ECF100A |
| Product Type | Charcoal / Activated Carbon Filter |
| Filter Media | Activated Carbon Media |
| MERV Rating | N/A |
| Primary Function | Gas & Odor Absorption |
| Filtration Type | VOC / Odor Control |
| Configuration | 2 Charcoal Filter Cassettes |
| Installation Position | Between Motors & Filters |
| Replacement Indicator | Odor Breakthrough or Reduced Suction |
Best For
- Laboratories & Chemical Applications
- Paint Applications
- VOC Control
- Odor & Smell Control
- Industrial Fume Applications
Installation
Remove the spark trap and inner filters. Position the two ECF100A charcoal cassettes against the motor-hole plates with the flat side facing the filters. Follow the airflow arrows on each cassette to ensure correct orientation, then reinstall the filters, filter plate and spark trap.
FAQs
What does the ECF100A Charcoal Filter remove?
The activated carbon media helps capture gases, VOCs and unwanted odors from the airflow.
Where are the charcoal filters installed?
The two cassettes are positioned between the inner filters and motors.
Does the ECF100A have a MERV rating?
No. Its primary function is gas, VOC and odor adsorption rather than particulate filtration.
When should the ECF100A charcoal filters be replaced?
Replace the charcoal media when odors become noticeable in the exhaust air or when system suction becomes noticeably reduced.
