Handheld Fume Extractor - High Vacuum Models

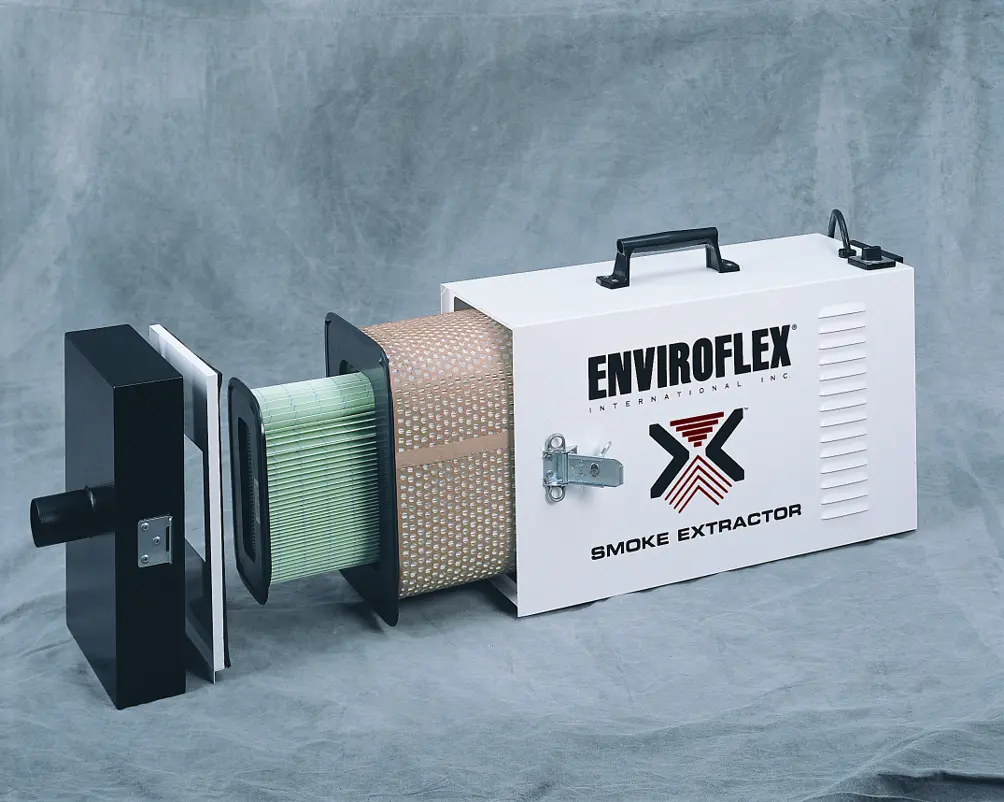

The lightweight Smoke Extractor (ESE) is a suitcase sized air cleaner that is very easy to carry. The contaminant is trapped at the source, thus maximizing the protection to the operator by removing contaminant before it enters the operators breathing area. The unit recycles clean air back into the building eliminating additional heating or cooling costs.
Models: ESE101A-W-HV / ESE201A-W-HV / ESE102A-HV / ESE202A-HV
7-Day Money-Back Guarantee
Shipping: Same day dispatch or delivery within 2–5 business days
| Specification | ESE101A-W-HV | ESE201A-W-HV | ESE102A-HV | ESE202A-HV |
|---|---|---|---|---|
| Air Flow | 105 C.F.M. (178 m³/hr) | 210 C.F.M. (355 m³/hr) | 105 C.F.M. (178 m³/hr) | 210 C.F.M. (355 m³/hr) |
| Filtration Efficiency | 0.3 - 1 um (46%), 1.0 - 3.0 um (61%), 3.0 - 10 um (95%) | Same as ESE101A-W-HV | (EF100: 1.0-3.0 Microns 50%-64.9%), 3.0-10.0 Microns | Same as ESE102A-HV |
| Number of Filters | 1 (EF200A) *** | 1 (EF200A) *** | 2 (EF100 + EF200) | 2 (EF100 + EF200) |
| Type of Filters | Washable | Washable | Throwaway | Throwaway |
| Maximum Vacuum | 100"W.G. (26KPA) | 100"W.G. (26KPA) | 100"W.G. (26KPA) | 100"W.G. (26KPA) |
| Number of Motors | 1 | 2 | 1 | 2 |
| Type of Motors | Bypass | Bypass | Bypass | Bypass |
| Voltage | 120 Volts, 50/60 HZ | 120 Volts, 50/60 HZ | 120 Volts, 50/60 HZ | 120 Volts, 50/60 HZ |
| Amperage | 8.5 amps | 17 amps | 8.5 amps | 17 amps |
| Dimensions | L 26 ½” x W 9 ¼” x H 14 ½” | Same as ESE101A-W-HV | Same as ESE101A-W-HV | Same as ESE101A-W-HV |
| Weight | 38 Lbs. | 43 Lbs. | 40 Lbs. | 45 Lbs. |
| Hose Length | 15 ft. (4.6 M) | 15 ft. (4.6 M) | 15 ft. (4.6 M) | 15 ft. (4.6 M) |
| Hose I.D. | 1¾” (45mm) | 1¾” (45mm) | 1¾” (45mm) | 1¾” (45mm) |
Note:
Please note Precoat should be used with the Washable Filter (EF200A) only.
Ideal for the maintenance and repair welding industries this handheld fume/smoke extractor is equipped with the following features:
- The unit has been designed to accommodate an optional charcoal filter to eliminate various gases after the particulate has been collected.
- Standard 15 ft. hose comes with the unit with the option to purchase 25- or 50-foot lengths.
- High efficiency washable filter and optional throwaway paper filter or HEPA filter for Hexavalent Chromium fumes when welding stainless steel.
- Portable and easy to maneuver to accommodate use in hard-to-reach places.
- Ideal for the collection of various hazardous airborne particulates such as asbestos, stainless steel, silica, carbon dust, fiberglass, galvanized steel, lead oxides etc.
- Available with one or two motors (120 volt 50/60HZ) – 4 higher vacuum models to choose from for smoke exhaust MIG gun applications.
- Optional stainless-steel cabinet suitable for use in corrosive environment e.g. salt mine or saltwater atmosphere.
- Multiple nozzle options include 3” or 8” wide with base, magnet and metal flex duct.
- Optional ‘Y’ connector is used to run two stations from a single unit.
