Introduction

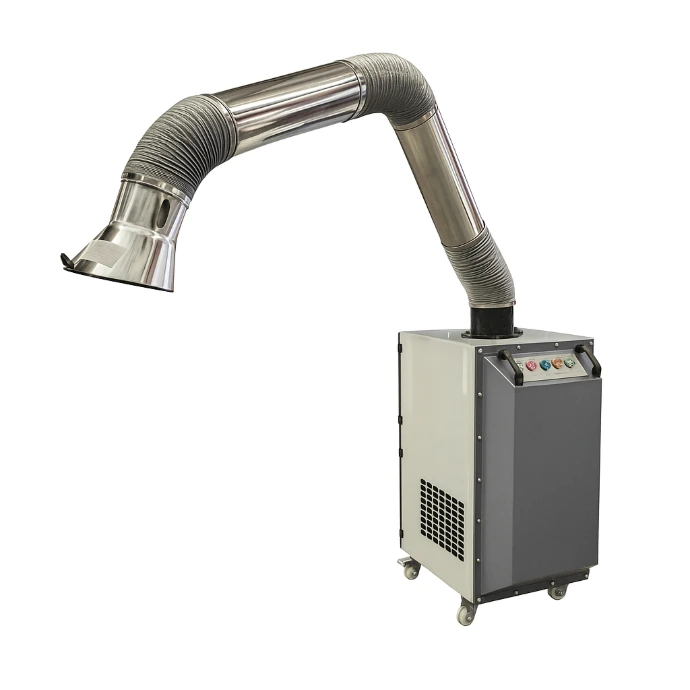

The SFE-1301 Portable Fume & Dust Extractor is engineered to capture contaminants directly at the source, helping improve indoor air quality while providing the flexibility of a portable extraction system. With 1760 CFM airflow, a 3 HP motor, and a 10 ft stainless steel flexible suction arm, it delivers dependable performance for demanding industrial applications.
High Extraction Performance
1760 CFM airflow for efficient source capture.
Industrial Reliability
3 HP motor built for continuous operation.
Flexible Positioning
Stainless steel arm reaches the extraction point with ease.Versatile Applications
Ideal for welding, soldering, grinding, and dust collection.
Designed for Efficient Source Capture
Unlike general ventilation systems that circulate contaminated air, the SFE-1301 removes fumes and dust where they are generated. This source-capture approach helps reduce airborne particles before they spread throughout the workspace.
The integrated 10 ft (3 m) stainless steel extraction arm can be easily positioned to maximize capture efficiency while allowing operators to work comfortably.
Key Features
- 1760 CFM Airflow for effective fume and dust extraction
- 3 HP (2.2 kW) Single-Phase Motor
- 230V / 60 Hz operation with 9.4A Full Load Current
- 10 ft Stainless Steel Flexible Suction Arm
- Manual Filter Cleaning System for consistent airflow and extended filter life
- Compact, portable design for multiple workstations
- Built to meet Canadian electrical standards
Applications
The SFE-1301 is suitable for a wide range of industrial environments, including:
- Welding and fabrication shops
- Metalworking facilities
- Maintenance departments
- Manufacturing plants
- Technical laboratories
- Soldering workstations
- Industrial repair facilities
- Dust-producing production areas
Its portable design allows operators to move the unit wherever extraction is required without permanent installation.
Why Choose the SFE-1301?
The SFE-1301 combines high airflow with practical mobility, making it an efficient solution for facilities that require localized air filtration. Its manual filter cleaning system helps maintain performance while reducing routine maintenance, and the durable stainless steel extraction arm provides reliable positioning in demanding work environments.
Whether you're adding a new welding station or improving air quality across multiple work areas, the SFE-1301 offers dependable extraction where it matters most.
Technical Specifications
| Specification | Details |
|---|---|
| Model | SFE-1301 |
| Airflow | 1760 CFM |
| Motor | 3 HP (2.2 kW) |
| Voltage | 230V |
| Frequency | 60 Hz |
| Phase | Single Phase |
| Full Load Current | 9.4A |
| Extraction Arm | 10 ft (3 m) Stainless Steel Flexible Arm |
| Filter Cleaning | Manual |
| Primary Applications | Welding Fume, Soldering Fume & Industrial Dust Extraction |
Frequently Asked Questions
What materials can the SFE-1301 extract?
The SFE-1301 is designed for welding fumes, soldering fumes, smoke, and fine industrial dust generated during fabrication and manufacturing processes.
Is the unit portable?
Yes. Its compact design allows it to be easily relocated between workstations, making it suitable for facilities where extraction needs change throughout the day.
How is the filter maintained?
The extractor features a manual filter cleaning system that helps maintain airflow and extend filter service life with routine maintenance.
Improve Workplace Air Quality
Cleaner air contributes to a safer, more productive workplace. The SFE-1301 Portable Fume & Dust Extractor provides reliable source capture, high airflow performance, and the flexibility required for modern industrial environments.
Looking for the right fume extraction solution? Contact our team today to learn more about the SFE-1301 or request a quote for your facility.
